PCB handling systems are indispensable in SMT lines, and can play a crucial role in the quality of the end product.

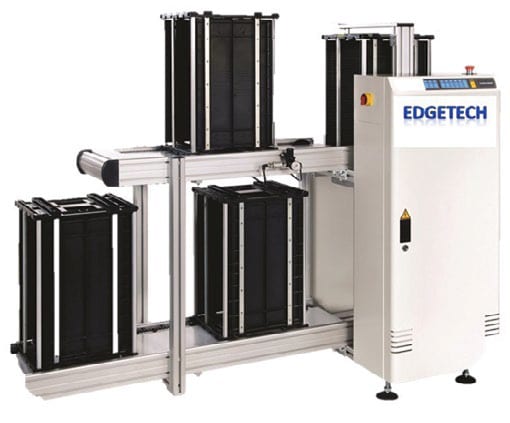

| Model: Edgetech loader/unloader; Manufacturer: Leaptech Corporation |
This is available in single and multi-magazine options, for loading and unloading of PCBs. It has a sturdy and stable design, a user-friendly soft touch LED membrane control panel, and a pusher conveyor with adjustable pusher positions. It provides a high throughput with a short magazine changeover time.
Key features:
|

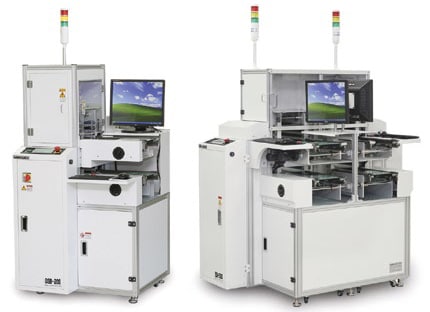

| Model: NG buffer (SSB-200/SSB-200D); Manufacturer: SJ Innotech Co. Ltd, Korea |
This board handling equipment (NG buffer) is locatedafter the SPI/AOI machines to store  NG PCBs in the rack/magazine while transferring good PCBs to the next machine in the FIFO or LIFO method. The advantage of the NG buffer is that it saves the cost of manufacturing by eliminating NG boards before final testing and rework can be done to make the PCB defect-free.
Key features: |
| Model: PCB inspection conveyor; Manufacturer: EMS Technologies Pvt Ltd |
This unit is used to link SMD machines or board handling units. It has a programmable logical controller. It uses a lead screw to adjust the width of the PCB. A standard 4-pin  SMEMA cable is supplied for connection with upstream and downstream machines.- Advertisement -
SMT inspection conveyors can link the SMT PCB magazine loader/unloader for SMT assembly. This PCB conveyor is mainly used for equipment linking, visual inspection, manual assembly, and PCB buffering functions. Its advantage is its short length, which allows it to be placed where there is a space limitation. Key features:
Contact: EMST Marketing Pvt Ltd, emstonline.com |

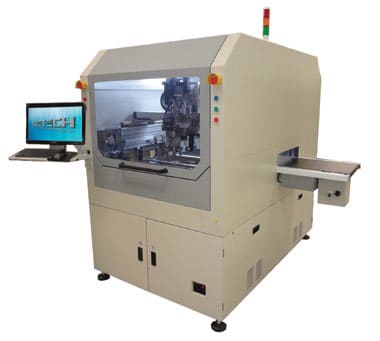

| Model: Getech bottom router (GBR); Manufacturer: Getech |
The GBR is an in-line bottom router machine specially designed to route (depanelise)  printed circuit board assemblies (PCBA) into individual assemblies. The PCB is received in the incoming conveyor and is positioned and clamped. The gripper finger station securely handles the PCB. The bottom spindle router precisely routes the PCB. After routing, the PCB is accurately placed in the outgoing conveyor while the frame is dropped onto the waste conveyor.A new graphical user interface with Getech’s ‘move, teach and cut’ advanced control software enables user friendly ‘visual’, rapid and accurate online programming.
Key features: |
| Model: VEGO FPS 60; Manufacturer: ASYS Group |
The product features a new FIFO buffer and can store up to 60 PCBs.
Key features: Contact: www.asys-group.com |

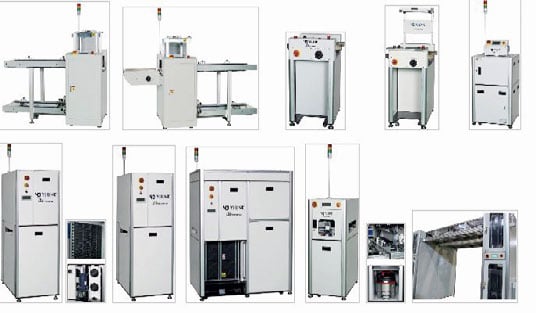

| Model: Y and A series; Manufacturer: YJ Link |
YJ Link is an established, global manufacturing company known for its automation and production systems. Its Y series and A series of board handlingsystems meet diverse  customer requirements. The Y series models are made in Vietnam and offer modularisation, flexibility, and fast lead times with a good price, while the A series products are made in South Korea.
Key features: Contact: NMTronics, www.nmtronics.com |
