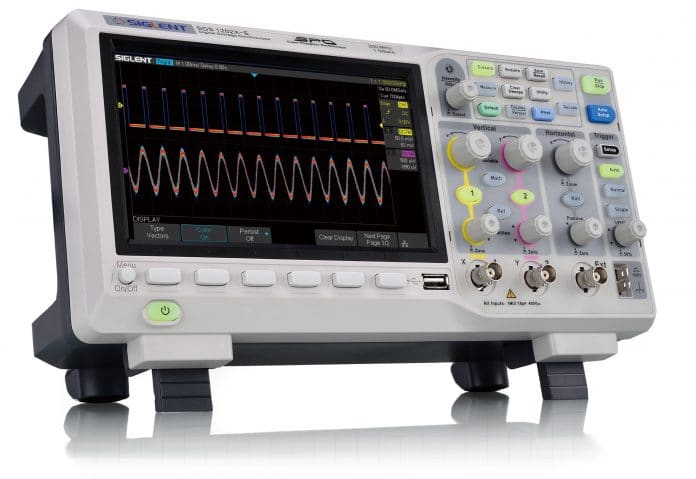

Siglent’s new SDS1000X-E series super phospho oscilloscope is available in one bandwidth, 200 MHz. It has a maximum sample rate of 1 GSa/s and a standard record length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.
The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).
The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent’s latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC,SPI,UART,CAN,LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra.
The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of Siglent’s new SDS1000X-E cannot be matched anywhere else in this price class.
Key features and specifications
Model : SDS1202X-E
Bandwidth : 200 MHz
Sampling Rate : (Max.) 1 GSa/s
Channels : 2+EXT
Memory Depth (Max.) : 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel)
Waveform Capture Rate (Max.) : 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Trigger Type : Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger (Standard) : IIC, SPI, UART/RS232, CAN, LIN
Decode Type (Standard) : IIC, SPI, UART/RS232, CAN, LIN
I/O : USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Display : 7 inch TFT-LCD (800×480)
Weight : Without package 2.5 Kg; With package 3.5 Kg
