Emitech, a company specializing in applied testing for product qualification in the automotive sector, has inaugurated its new vehicle test center in Montigny-le-Bretonneux, France. The EMC chamber is equipped with a complete EMC test system from Rohde & Schwarz including R&S BBA150, R&S BBA130 and R&S BBL200 broadband amplifiers, R&S ESW44 test receivers, R&S SMB100B RF signal generators and power meters. At the inauguration ceremony in March, Rohde & Schwarz also demonstrated its innovative solution for advanced driver assistance system (ADAS) testing.

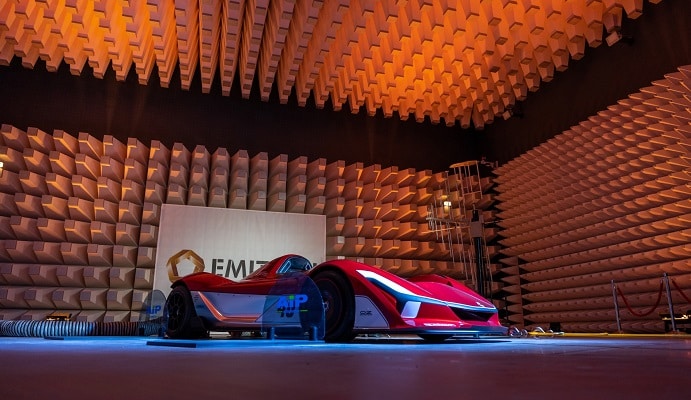

Emitech’s new test center is dedicated to electromagnetic compatibility tests for vehicles: two and three- wheelers, cars, trucks, tractors, construction machinery, etc. The reinforcement of a heavy load area supporting up to 40 t allows it to accommodate construction machinery as well as high-tonnage and high- volume equipment found in the defense, aeronautics, railways and nuclear power sectors and, by extension, industry. The center also has the largest and most recent Faraday cage built in France, which is used to perform electromagnetic compatibility tests to ensure that the equipment under test does not generate interference and is not itself disturbed by interference representative of the context in which it will be used.
The R&S BBA and R&S BBL amplifiers support the EMC tests at Emitech’s test center. They are housed in several system racks and supply high-power RF signals to all transducers used in the conducted and radiated EMC test setups. More specifically, two racks for R&S BBL200 amplifiers and a 3 kW power class R&S BBA150 amplifier are installed below the chamber, which work together to create a high field strength from 9 kHz to 1 GHz. The amplifiers use one stripline antenna and two log-periodic antennas. Additionally, a mobile rack including 600 W/300 W power class R&S BBA130 amplifiers with one horn antenna is used inside the chamber for high field strength tests up to 6 GHz.
The R&S BBA amplifiers cover frequency bands up to 6 GHz. These amplifiers can be used for a variety of applications, including the various standards for EMS measurements. The R&S BBL200 liquid-cooled power amplifiers for high field strengths complement the test setup. These amplifiers are ideal for applications requiring high RF power in a frequency range from 9 kHz to 250 MHz. They are liquid-cooled, solid-state, highly rugged, quiet and efficient. Precise monitoring of all runtime parameters ensures maximum robustness and reliability. The amplifiers are designed for continuous operation and deliver constant power even under mismatch conditions.
