In August 2012, National Instruments introduced two spectrum analysers.
Features and USP: The PXIe-5644R vector signal transceiver (VST) is part of a new class of instrumentation that combines a vector signal generator and vector signal analyser (VSA) with FPGA based real time signal processing and control. This VST combines the fast measurement speeds and small form factor of a production test box with the flexibility and high performance of R&D grade box instruments. Hence, one can use this VST to test a variety of cellular and wireless standards, such as IEEE 802.11ac with an error vector magnitude that is better than -45 dB (0.5 per cent) at 5.8 GHz. In addition, it offers the flexibility to expand this VST’s small 3 slot 3U PXI Express form factor to support multiple input, multiple output (MIMO) configurations.

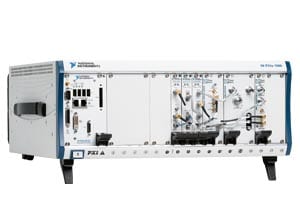

Also, its Phase Matrix 26.5 GHz vector signal analyser (VSA) combines a Phase Matrix microwave downconverter and the NI PXIe-5663E VSA to deliver RF and microwave vector signals and spectrum analysis from 10 MHz to 26.5 GHz to address RF and microwave test application needs from spectral
` 2.5 million onwards
monitoring to wireless tests. With the PXI platform and the flexible NI LabVIEW programming environment, it seamlessly integrates additional RF and other mixed signal I/O instruments into the test system.
For further details: +91 9980609878; abhay.samant@ni.com
Phase Matrix ` 3.5 million onwards
